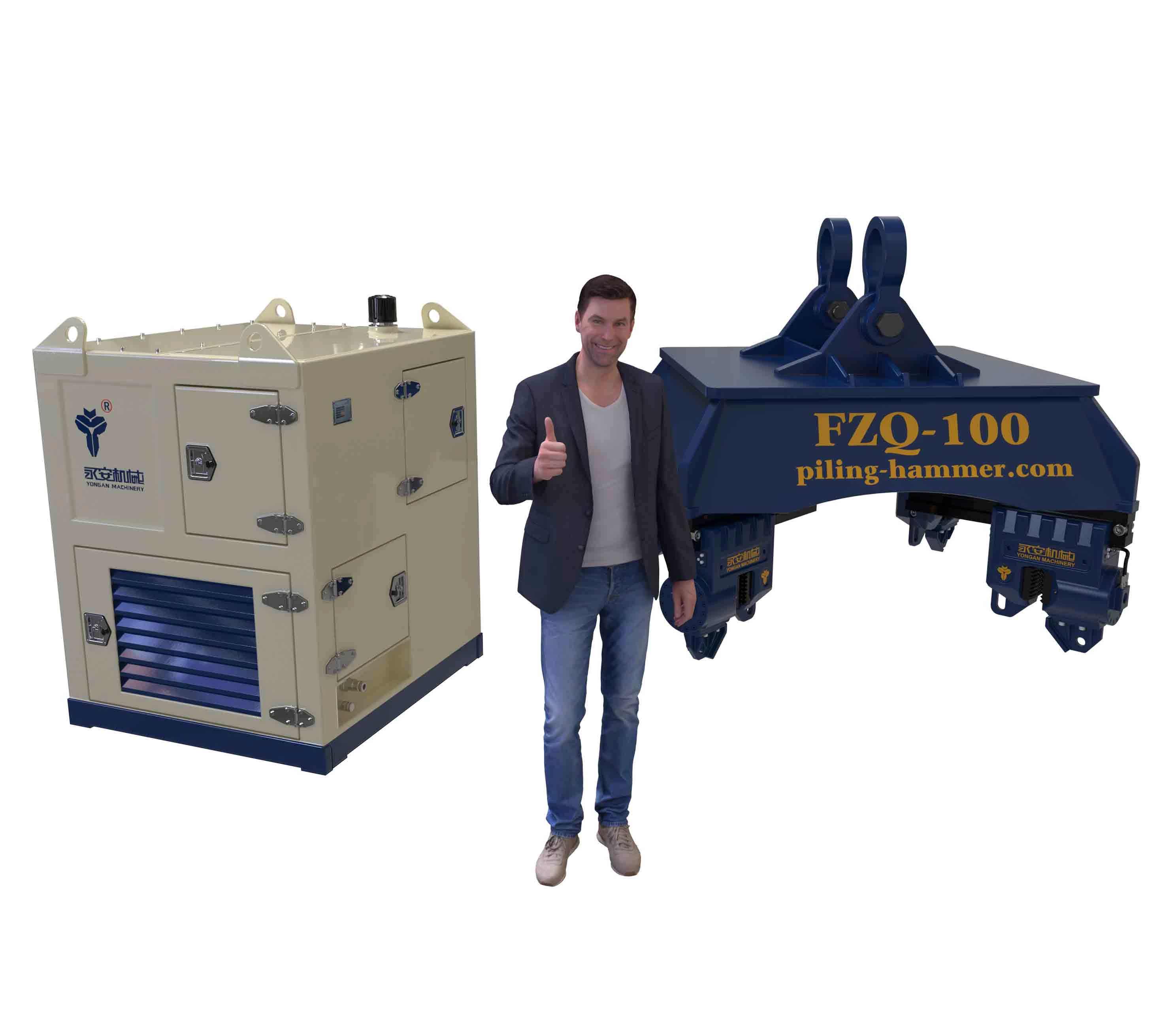

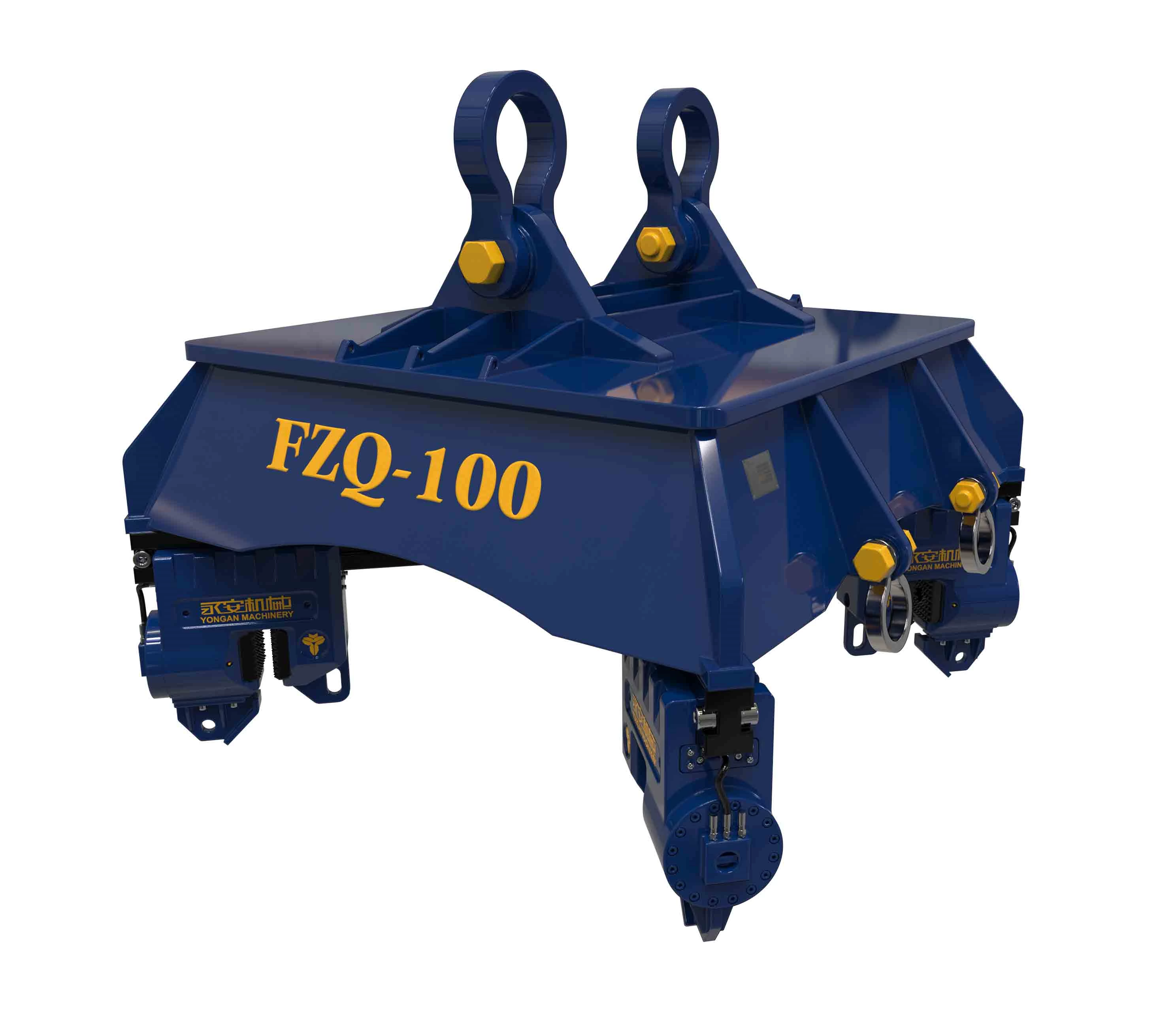

FZQ-100 Technical Parameter Information
- Weight:
- 8 Ton
- Max.Lifting Wieght:
- 100 Ton
- Max. Clamping Force:
- 2400 kN
- Max. Working Pressure:
- 280 Bar
- Available clamping scope:
- 1-2 Meter
- Hydraulic Clamp Head Number:
- 4 set
- Dimensions (L*W*H):
- 2000*2000*2400 mm
